springboot多模块项目打war包

后端 0 867

小小草 2020年8月15日 11:48 发表

摘要：这个内置的tomcat是在spring-boot-starter-web这个start中引入的，所以说：如果你的项目里面用到了这个starter（如下），就加上下面蓝色框中的代码将内置的tomcat屏蔽掉如果你的项目里面没用到这个starter，就不

一、父模块配置

1，指定pakaging:pom

2，指定编译的版本：如下图：

<properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <java.version>1.7</java.version>
    </properties>

3，屏蔽内置的tomcat:

　　（1）这个内置的tomcat是在spring-boot-starter-web这个start中引入的，所以说：

　　　　　　1）如果你的项目里面用到了这个starter（如下），就加上下面蓝色框中的代码将内置的tomcat屏蔽掉

　　　　　　2）如果你的项目里面没用到这个starter，就不会有内置的tomcat，这一条就可以跳过。　

　　　　　　3）在大多数项目中都是有用到这个starter中的，而且可能很多子模块中也用到了这个starter，所以可以在父模块中添加（子模块中不需要在添加），并屏蔽内置tomcat，如下：　　　

<dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <!--忽略内嵌tomcat，打包部署到tomcat。注*本地运行的时候要把这一段忽略引入个注释掉，要不然项目启动不了 -->
            <exclusions>
                <exclusion>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-starter-tomcat</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

4，关于对子模块的依赖:

　　（1）没有用到子模块可以不写

　　（2）用到哪个配哪个：如下：

<dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>com.googosoft.microservice</groupId>
                <artifactId>micro-servcice-static</artifactId>
                <version>${project.version}</version>
            </dependency>
            <dependency>
                <groupId>com.googosoft.microservice</groupId>
                <artifactId>micro-servcice-infrasture</artifactId>
                <version>${project.version}</version>
            </dependency>
            <dependency>
                <groupId>com.googosoft.microservice</groupId>
                <artifactId>micro-servcice-user</artifactId>
                <version>${project.version}</version>
            </dependency>
            <dependency>
                <groupId>com.googosoft.microservice</groupId>
                <artifactId>micro-service-autho</artifactId>
                <version>${project.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>

5，子模块配置：

<modules>
        <module>micro-service-static</module>
        <module>micro-service-infrasture</module>
        <module>micro-servcice-user</module>
        <module>micro-service-autho</module>
        <module>micro-service-run</module>
    </modules>

6，配置文件配置（该设置可在父模块中统一设置，也可以在子模块中单独设置）

在没有配置的时候报错，找不到transaction.xml。

出错原因：配置文件没有打进war包

需要做如下配置：

<!-- 解决读不到配置文件的问题，将指定的文件打进war包 -->
        <resources>
            <resource>
                <!-- 要打进war包的文件所在的目录 -->
                <directory>src/main/resorce</directory>
                <includes>
                    <include>**.*</include>
                    <include>**/*.*</include>
                    <include>**/*/*.*</include>
                </includes>
                <filtering>true</filtering>
            </resource>
        </resources>

7，父模块完整的xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.5.18.RELEASE</version>
        <relativePath /> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.googosoft.microservice</groupId>
    <artifactId>googosoft-micro-service</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>pom</packaging>
    <name>googosoft-micro-service</name>
    <url>http://maven.apache.org</url>
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <java.version>1.7</java.version>
    </properties>
    <!--  只配置依赖到的即可 -->
<!--     <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>com.googosoft.microservice</groupId>
                <artifactId>micro-servcice-static</artifactId>
                <version>${project.version}</version>
            </dependency>
            <dependency>
                <groupId>com.googosoft.microservice</groupId>
                <artifactId>micro-servcice-infrasture</artifactId>
                <version>${project.version}</version>
            </dependency>
            <dependency>
                <groupId>com.googosoft.microservice</groupId>
                <artifactId>micro-servcice-user</artifactId>
                <version>${project.version}</version>
            </dependency>
            <dependency>
                <groupId>com.googosoft.microservice</groupId>
                <artifactId>micro-service-autho</artifactId>
                <version>${project.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement> -->
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!-- 在父模块中配置，子模块无需在配置 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <!--忽略内嵌tomcat，打包部署到tomcat。注*本地运行的时候要把这一段忽略引入个注释掉，要不然项目启动不了 -->
            <exclusions>
                <exclusion>
                    <groupId>org.springframework.boot</groupId>
                    <artifactId>spring-boot-starter-tomcat</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
        </dependency>
        <!--用于编译jsp -->
        <dependency>
            <groupId>org.apache.tomcat.embed</groupId>
            <artifactId>tomcat-embed-jasper</artifactId>
            <scope>provided</scope>
        </dependency>
    </dependencies>
    <!-- 子模块配置 -->
    <modules>
        <module>micro-service-static</module>
        <module>micro-service-infrasture</module>
        <module>micro-servcice-user</module>
        <module>micro-service-autho</module>
        <module>micro-service-run</module>
    </modules>
</project>

View Code

二、子模块-启动模块配置

1，指定父模块：

<parent>
        <groupId>com.googosoft.microservice</groupId>
        <artifactId>googosoft-micro-service</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>

2，packaging设置：

这里我需要一个war包，所i一指定成war

<packaging>war</packaging>

3，指定依赖的子模块

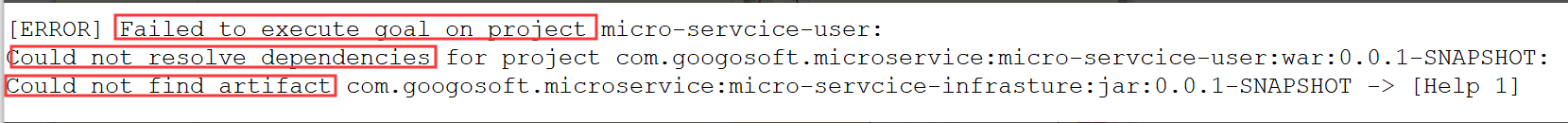

如果依赖的模块的packaging为war，就必须配置type，classifier,否则会报下错：

正确的配置：

<dependency>
            <groupId>com.googosoft.microservice</groupId>
            <artifactId>micro-servcice-user</artifactId>
            <version>0.0.1-SNAPSHOT</version>
            <!-- 该模块的packaging为war，所以下面两项必须设置，否则打包会出出错  -->
            <type>jar</type>
            <classifier>classes</classifier>
        </dependency>
        <dependency>
            <groupId>com.googosoft.microservice</groupId>
            <artifactId>micro-service-autho</artifactId>
            <version>0.0.1-SNAPSHOT</version>
            <!-- 该模块的packaging为war，所以下面两项必须设置，否则打包会出出错  -->
            <type>jar</type>
            <classifier>classes</classifier>
        </dependency>
        <dependency>
            <groupId>com.googosoft.microservice</groupId>
            <artifactId>micro-servcice-infrasture</artifactId>
            <version>0.0.1-SNAPSHOT</version>
            <!-- 该模块的packaging为war，所以下面两项必须设置，否则打包会出出错  -->
            <type>jar</type>
            <classifier>classes</classifier>
        </dependency>

4,打war包插件设置

<plugins>
            <!-- war包插件 -->
            <plugin>
                <artifactId>maven-war-plugin</artifactId>
                <configuration>
                    <!-- 把class打包jar作为附件 -->
                    <attachClasses>true</attachClasses>
                </configuration>
            </plugin>
            <!-- 指定启动入口 -->
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <mainClass>com.googosoft.UserBootApplication</mainClass>
                </configuration>
            </plugin>
        </plugins>

5，指定启动入口

<!-- 指定启动入口 -->
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <mainClass>com.googosoft.UserBootApplication</mainClass>
                </configuration>
            </plugin>

除了上面的配置还需要加Initializer继承SpringBootServletInitializer重写SpringApplicationBuilder方法，如下：

package com.googosoft;

import org.springframework.boot.builder.SpringApplicationBuilder;
import org.springframework.boot.web.support.SpringBootServletInitializer;

public class ServletInitializer extends SpringBootServletInitializer {

    @Override
    protected SpringApplicationBuilder configure(SpringApplicationBuilder application) {
        return application.sources(UserBootApplication.class);
    }
}

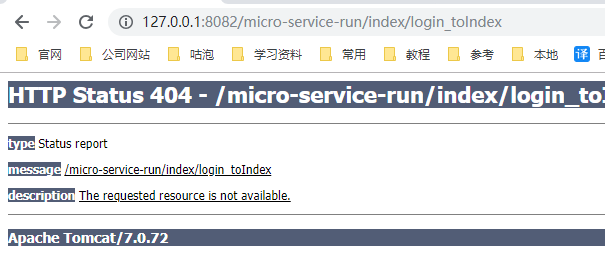

不重写报错：

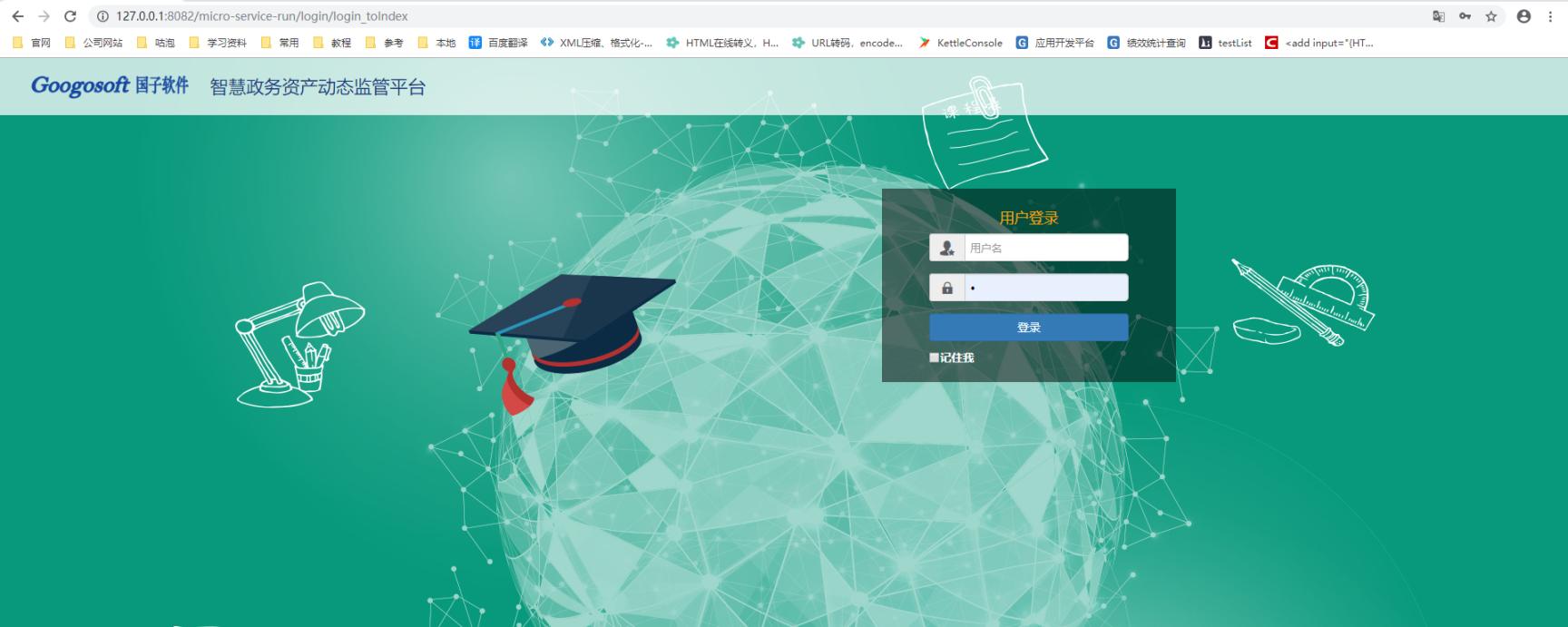

重写后：

6，启动模块完整pom.xml

<?xml version="1.0"?>
<project
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"
    xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.googosoft.microservice</groupId>
        <artifactId>googosoft-micro-service</artifactId>
        <version>0.0.1-SNAPSHOT</version>
    </parent>
    <groupId>com.googosoft.microservice</groupId>
    <artifactId>micro-service-run</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>micro-service-run</name>
    <packaging>war</packaging>
    <url>http://maven.apache.org</url>
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>
    <dependencies>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>3.8.1</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>com.googosoft.microservice</groupId>
            <artifactId>micro-servcice-user</artifactId>
            <version>0.0.1-SNAPSHOT</version>
            <!-- 该模块的packaging为war，所以下面两项必须设置，否则打包会出出错  -->
            <type>jar</type>
            <classifier>classes</classifier>
        </dependency>
        <dependency>
            <groupId>com.googosoft.microservice</groupId>
            <artifactId>micro-service-autho</artifactId>
            <version>0.0.1-SNAPSHOT</version>
            <!-- 该模块的packaging为war，所以下面两项必须设置，否则打包会出出错  -->
            <type>jar</type>
            <classifier>classes</classifier>
        </dependency>
        <dependency>
            <groupId>com.googosoft.microservice</groupId>
            <artifactId>micro-servcice-infrasture</artifactId>
            <version>0.0.1-SNAPSHOT</version>
            <!-- 该模块的packaging为war，所以下面两项必须设置，否则打包会出出错  -->
            <type>jar</type>
            <classifier>classes</classifier>
        </dependency>
    </dependencies>
    <build>
        <!-- 为jar包取名 -->
        <finalName>micro-service-run</finalName>
        <plugins>
            <!-- war包插件 -->
            <plugin>
                <artifactId>maven-war-plugin</artifactId>
                <configuration>
                    <!-- 把class打包jar作为附件 -->
                    <attachClasses>true</attachClasses>
                </configuration>
            </plugin>
            <!-- 指定启动入口 -->
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <mainClass>com.googosoft.UserBootApplication</mainClass>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

View Code

三、子模块-packaging为war的模块设置

1，packaging设置：war

设置为war后必须添加plugin

<plugin>
                <artifactId>maven-war-plugin</artifactId>
                <configuration>
                    <!-- 把class打包jar作为附件 -->
                    <attachClasses>true</attachClasses>
                </configuration>
            </plugin>

2，模块依赖设置

<dependency>
            <groupId>com.googosoft.microservice</groupId>
            <artifactId>micro-servcice-infrasture</artifactId>
            <type>jar</type>
            <classifier>classes</classifier>
            <version>0.0.1-SNAPSHOT</version>
            <scope>provided</scope>
        </dependency>

3，packaging为war的子模块的完整的pom.xml

<?xml version="1.0"?>
<project
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"
    xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>com.googosoft.microservice</groupId>
        <artifactId>googosoft-micro-service</artifactId>
        <version>0.0.1-SNAPSHOT</version>
        <relativePath>../pom.xml</relativePath>
    </parent>
    <artifactId>micro-servcice-user</artifactId>
    <name>micro-servcice-user</name>
    <url>http://maven.apache.org</url>
    <packaging>war</packaging>
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>
    <dependencies>
        <!-- https://mvnrepository.com/artifact/org.apache.commons/commons-collections4 -->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-collections4</artifactId>
            <version>4.1</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.commons/commons-lang3 -->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
            <version>3.9</version>
        </dependency>
        <dependency>
            <groupId>org.apache.poi</groupId>
            <artifactId>poi</artifactId>
            <version>3.15</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.xmlbeans/xmlbeans -->
        <dependency>
            <groupId>org.apache.xmlbeans</groupId>
            <artifactId>xmlbeans</artifactId>
            <version>3.1.0</version>
        </dependency>
        <!-- poi-ooxml XSSF is our port of the Microsoft Excel XML (2007+) file
            format (OOXML) to pure Java -->
        <dependency>
            <groupId>org.apache.poi</groupId>
            <artifactId>poi-ooxml</artifactId>
            <version>3.15</version>
        </dependency>
        <dependency>
            <groupId>org.apache.poi</groupId>
            <artifactId>poi-ooxml-schemas</artifactId>
            <version>3.15</version>
        </dependency>
        <dependency>
            <groupId>org.apache.shiro</groupId>
            <artifactId>shiro-spring</artifactId>
            <version>1.3.2</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/net.sf.ezmorph/ezmorph -->
        <dependency>
            <groupId>net.sf.ezmorph</groupId>
            <artifactId>ezmorph</artifactId>
            <version>1.0.6</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.wso2.apache.httpcomponents/httpclient -->
        <dependency>
            <groupId>org.wso2.apache.httpcomponents</groupId>
            <artifactId>httpclient</artifactId>
            <version>4.3.1.wso2v1</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/net.sourceforge.jexcelapi/jxl -->
        <dependency>
            <groupId>net.sourceforge.jexcelapi</groupId>
            <artifactId>jxl</artifactId>
            <version>2.6.12</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/at.bestsolution.efxclipse.eclipse/com.google.gson -->
        <!-- <dependency> -->
        <!-- <groupId>at.bestsolution.efxclipse.eclipse</groupId> -->
        <!-- <artifactId>com.google.gson</artifactId> -->
        <!-- <version>2.2.4</version> -->
        <!-- <scope>system</scope> -->
        <!-- <systemPath>${basedir}/lib/com.google.gson-2.2.4.jar</systemPath> -->
        <!-- </dependency> -->
        <!-- https://mvnrepository.com/artifact/org.apache.commons/commons-lang3 -->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
            <version>3.9</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/eu.bitwalker/UserAgentUtils -->
        <dependency>
            <groupId>eu.bitwalker</groupId>
            <artifactId>UserAgentUtils</artifactId>
            <version>1.21</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/commons-beanutils/commons-beanutils -->
        <dependency>
            <groupId>commons-beanutils</groupId>
            <artifactId>commons-beanutils</artifactId>
            <!-- <version>1.9.4</version> -->
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.commons/commons-collections4 -->
        <!-- <dependency> -->
        <!-- <groupId>org.apache.commons</groupId> -->
        <!-- <artifactId>commons-collections4</artifactId> -->
        <!-- <version>4.4</version> -->
        <!-- </dependency> -->
        <!-- https://mvnrepository.com/artifact/org.apache.commons/commons-lang3 -->
        <!-- <dependency> -->
        <!-- <groupId>org.apache.commons</groupId> -->
        <!-- <artifactId>commons-lang3</artifactId> -->
        <!-- <version>3.9</version> -->
        <!-- </dependency> -->
        <!-- https://mvnrepository.com/artifact/net.sf.json-lib/json-lib -->
        <!-- <dependency> -->
        <!-- <groupId>net.sf.json-lib</groupId> -->
        <!-- <artifactId>json-lib</artifactId> -->
        <!-- <version>2.2.3</version> -->
        <!-- <scope>system</scope> -->
        <!-- <systemPath>${basedir}/lib/json-lib-2.2.3-jdk13.jar</systemPath> -->
        <!-- </dependency> -->

        <!-- https://mvnrepository.com/artifact/org.apache.shiro/shiro-core -->
        <dependency>
            <groupId>org.apache.shiro</groupId>
            <artifactId>shiro-core</artifactId>
            <version>1.4.2</version>
        </dependency>
        <dependency>
            <groupId>com.googosoft.microservice</groupId>
            <artifactId>micro-service-static</artifactId>
            <version>${project.version}</version>
        </dependency>
        <!--单测 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <!--jdbc -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>net.sf.json-lib</groupId>
            <artifactId>json-lib</artifactId>
            <version>2.4</version>
            <classifier>jdk15</classifier>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.1.6</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-></artifactId>
        </dependency>
        <!-- mysql驱动 -->
        <!-- <dependency> -->
        <!-- <groupId>mysql</groupId> -->
        <!-- <artifactId>mysql-connector-java</artifactId> -->
        <!-- </dependency> -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>4.3.8.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>commons-logging</groupId>
            <artifactId>commons-logging</artifactId>
            <version>1.2</version>
        </dependency>
        <dependency>
            <groupId>com.jslsolucoes</groupId>
            <artifactId>ojdbc6</artifactId>
            <version>11.2.0.1.0</version>
        </dependency>
        <dependency>
            <groupId>com.google.code.gson</groupId>
            <artifactId>gson</artifactId>
            <version>2.8.2</version>
        </dependency>
        <dependency>
            <groupId>com.googosoft.microservice</groupId>
            <artifactId>micro-servcice-infrasture</artifactId>
            <version>0.0.1-SNAPSHOT</version>
            <!-- 该模块的packaging为war，所以下面两项必须设置，否则打包会出出错 -->
            <type>jar</type>
            <classifier>classes</classifier>
        </dependency>
    </dependencies>
    <build>
        <!-- 为jar包取名 -->
        <finalName>micro-servcice-user</finalName>
        <plugins>
            <plugin>
                <artifactId>maven-war-plugin</artifactId>
                <configuration>
                    <!-- 把class打包jar作为附件 -->
                    <attachClasses>true</attachClasses>
                </configuration>
            </plugin>
            <!-- 热布署 -->
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <!-- <configuration> -->
                <!-- fork : 如果没有该项配置，这个devtools不会起作用，即应用不会restart -->
                <!-- <fork>true</fork> -->
                <!-- <mainClass>com.googosoft.UserBootApplication</mainClass> -->
                <!-- <layout>ZIP</layout> -->
                <!-- </configuration> -->
                <!-- <executions> -->
                <!-- <execution> -->
                <!-- <goals> -->
                <!-- <goal>repackage</goal>可以把依赖的包都打包到生成的Jar包中 -->
                <!-- </goals> -->
                <!-- </execution> -->
                <!-- </executions> -->
            </plugin>
        </plugins>
    </build>
</project>

View Code

四、其他设置

（1）依赖中尽量不要引用外部jar包

（我在开始使用的下面的方式，打包）

<dependency>
            <groupId>org.apache.poi</groupId>
            <artifactId>poi-ooxml-schemas</artifactId>
            <version>3.15</version>
            <scope>system</scope>
            <systemPath>${basedir}/lib/poi-ooxml-schemas-3.15.jar</systemPath>
        </dependency>

项目运行时报错：classNotFound

将后两行去掉，项目就可以正常运行了，引用外部jar包应该是可以使用的，但是可能需要额外的配置，最好不要使用。

点赞 0 收藏(0)
